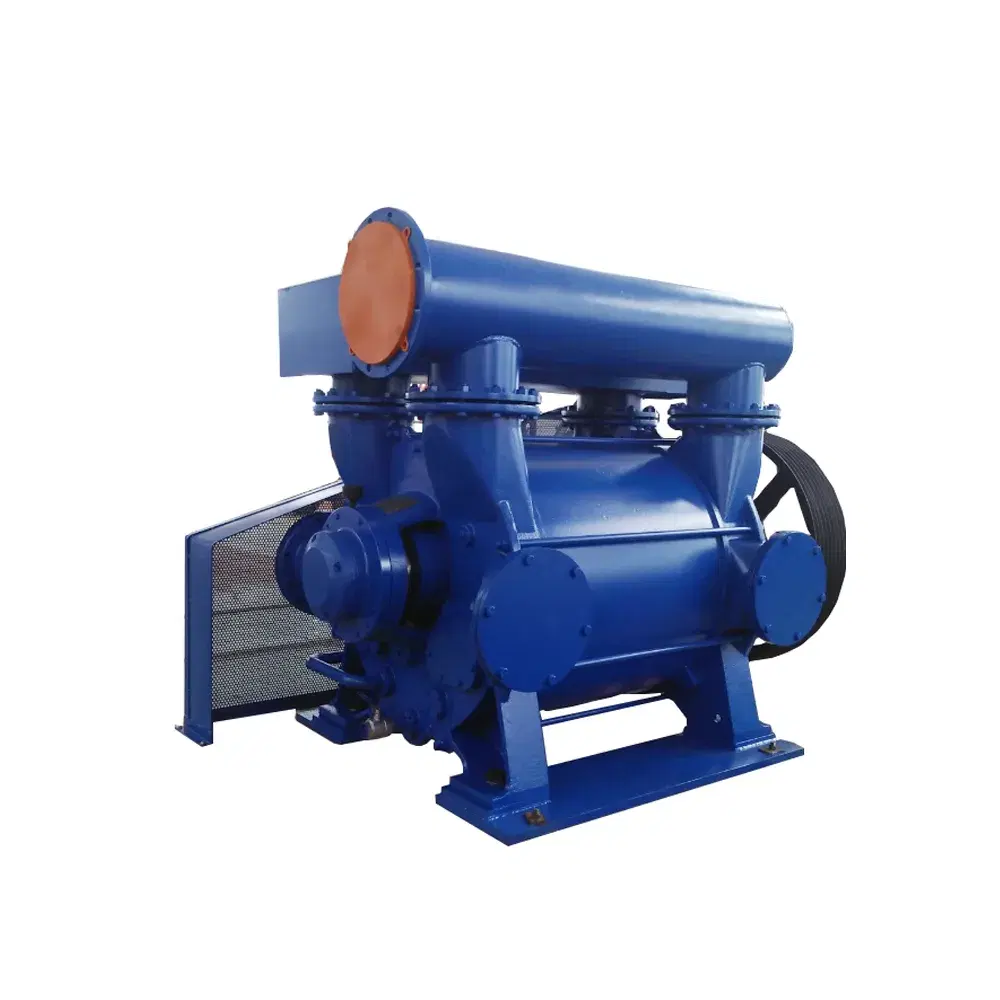

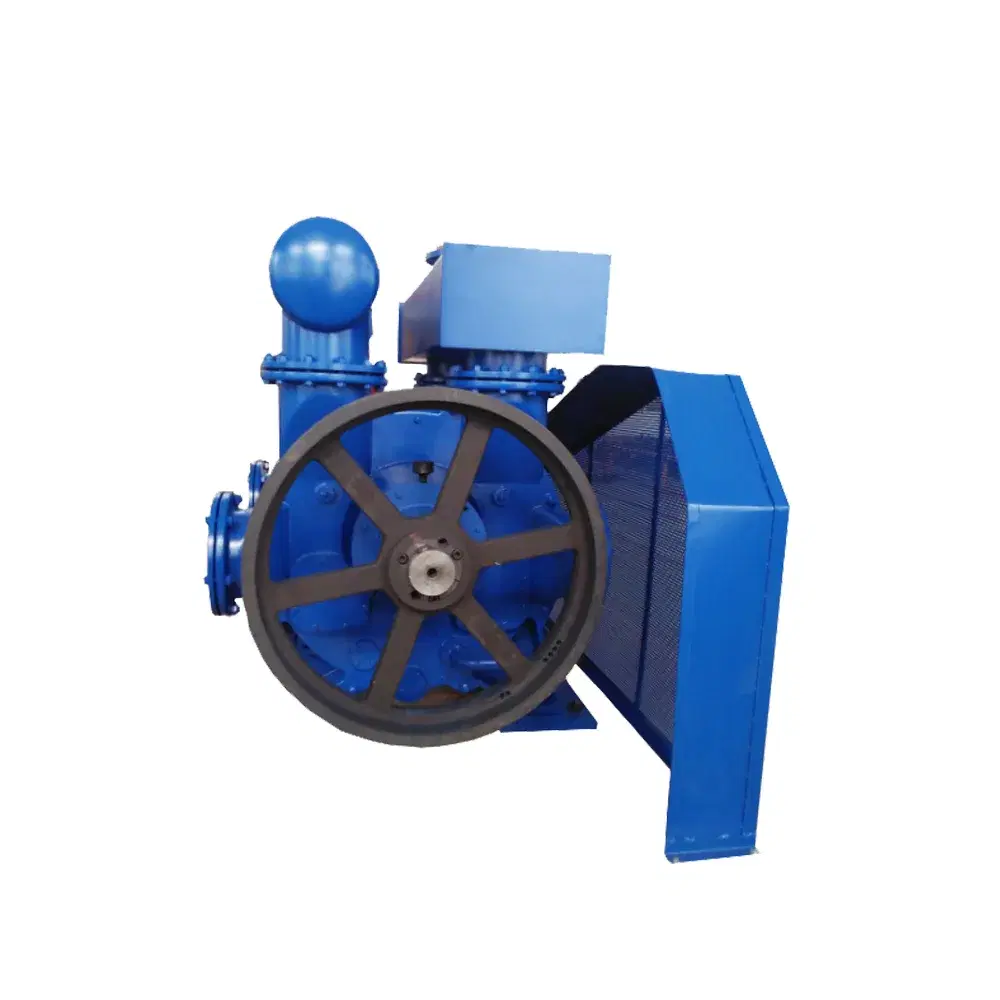

Liquid Ring Compressor
Liquid ring compressor for hydrogen, acetylene and tail-gas recovery in chlor-alkali and PVC plants.
- Max Capacity
- 4,200 – 62,400 m³/h
- Ultimate Vacuum
- 160 mbar
- Bearing Life
- >200,000 h
- Material
- SS304 / SS316
Highlights
- Genuine equipment supplied with warranty
- Professional installation & commissioning
- 24/7 after-sales support nationwide
- Genuine spare parts stocked locally
The 2BE series liquid ring compressor creates pressure by suctioning and compressing non-corrosive, particle-free gas with water as the working liquid, giving safe, near-isothermal compression ideal for flammable gases. Valve plates adjust the exhaust area with inlet pressure to prevent over-compression, wetted parts are available in SS304/SS316 with protective coating, and imported bearings offer a service life exceeding 200,000 hours. Complete packages add a plate heat exchanger, gas-liquid separator, automatic water make-up and a DCS interface. It is used for chlor-alkali hydrogen packages, PVC acetylene units and exhaust-gas recovery, with capacities from 4,200 to 62,400 m³/h.
