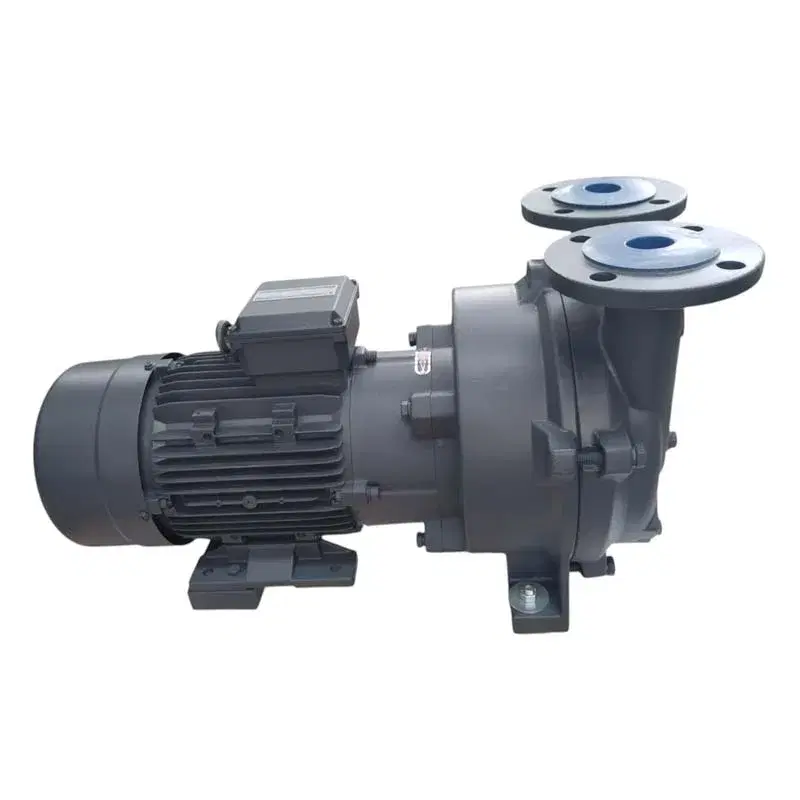

Compact Liquid Ring Vacuum Pump
Compact direct-coupled liquid ring pump and compressor with cavitation protection and optional explosion-proof build.
- Capacity
- 27 – 500 m³/h (0.45 – 8.33 m³/min)
- Ultimate Vacuum
- 33 mbar
- Motor Power
- 0.81 – 15 kW
- Options
- Explosion-proof (2BV6)
Highlights
- Genuine equipment supplied with warranty
- Professional installation & commissioning
- 24/7 after-sales support nationwide
- Genuine spare parts stocked locally
The 2BV series is a compact, direct-coupled liquid ring vacuum pump (and compressor) that installs in a small footprint and reaches 33 mbar absolute. A cavitation-protection port eliminates cavitation noise and extends pump life, and stainless-steel construction (SS304/SS316L) improves corrosion resistance. Explosion-proof 2BV6 variants suit hazardous areas. It is used in pulp & paper, chemical, power and sugar industries for vapour and gas handling, with capacities from 27 to 500 m³/h.
