Low-Pressure Two-Stage Screw Compressor
Two-stage low-pressure screw compressor for high-volume aeration and process air, saving over 10% energy versus standard machines.
- Power
- 55 – 250 kW
- Free Air Delivery
- 4.5 – 62 m³/min
- Working Pressure
- 4.5 / 5.5 bar
- Design
- Two-stage, PM VSD
Highlights
- Genuine equipment supplied with warranty
- Professional installation & commissioning
- 24/7 after-sales support nationwide
- Genuine spare parts stocked locally

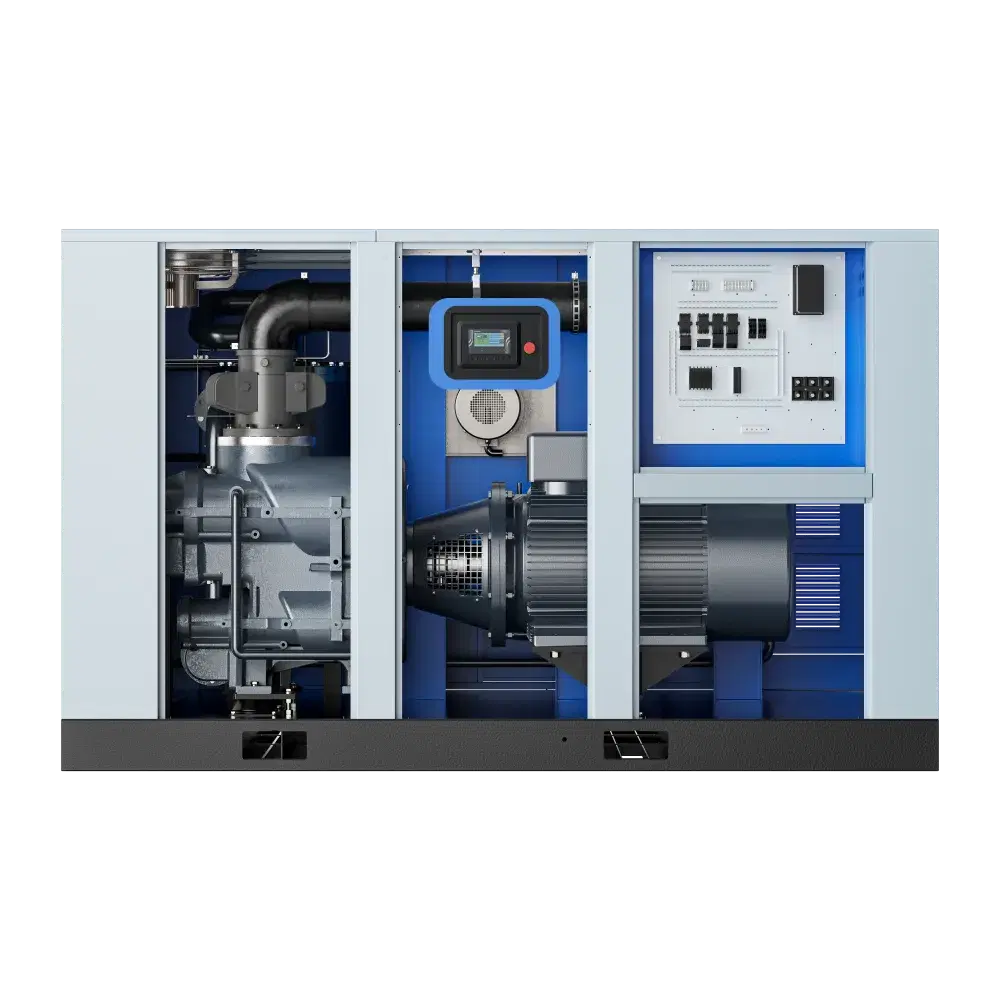

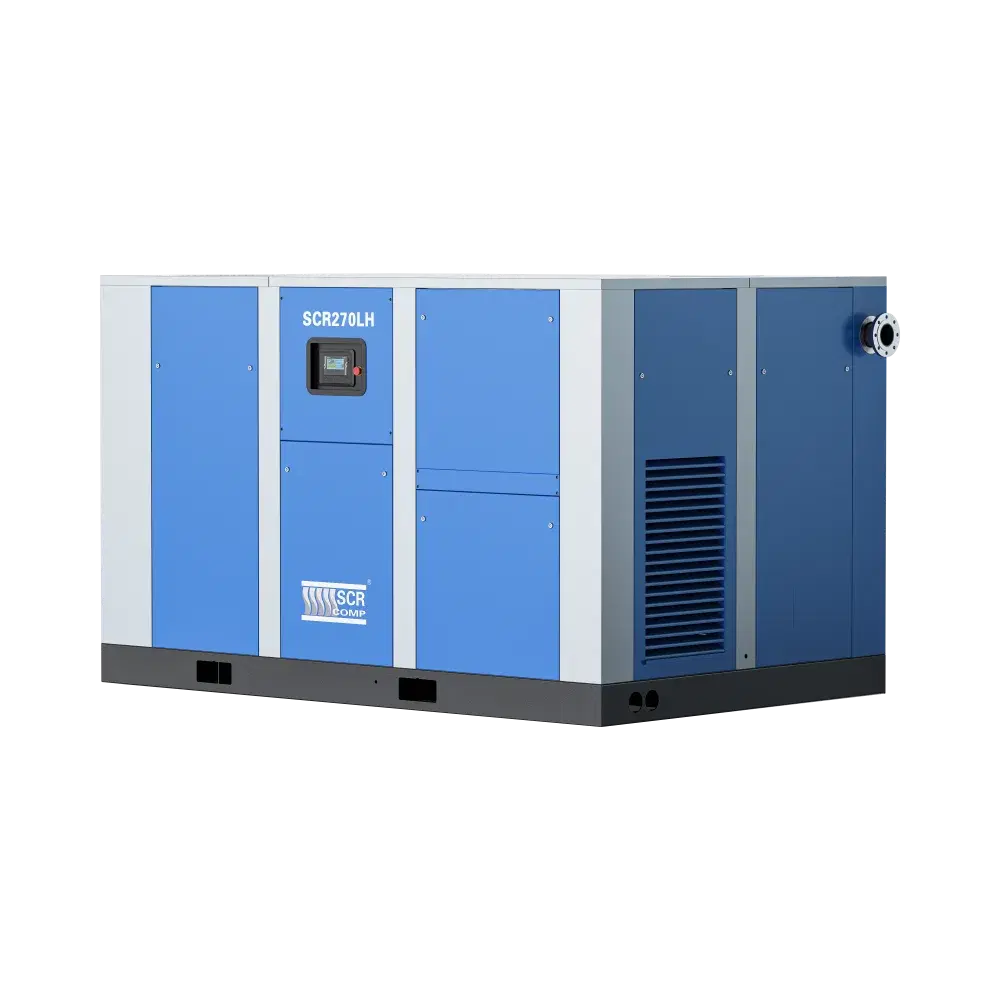

The LH/LHPM series is a two-stage, low-pressure screw compressor engineered for applications that need a large volume of air at modest pressure — wastewater aeration, pneumatic conveying and similar process duties. Two-stage compression brings the process closer to isothermal, reducing the compression ratio and internal leakage to save more than 10% energy against a standard compressor. A permanent-magnet VSD motor above IE4 efficiency and double heavy-duty intake filtration round out a range covering 55 to 250 kW at 4.5–5.5 bar.
